Trench is a free, open source messaging & event streaming project written in TypeScript and released under MIT. It has 1,663 GitHub stars, 64 forks and 3 open issues, and was last pushed 5 months ago. On this registry it ranks #5 of 8 tracked projects in Messaging & Event Streaming, with 5 head-to-head comparisons available.

What is Trench?

What it is

Trench is an open-source analytics infrastructure project written in TypeScript under the MIT license. It is built around Apache Kafka, ClickHouse, and a Node.js-based service, and it is distributed as a single production-ready Docker image for event tracking. The project sits in the open-source event streaming and analytics ecosystem, where teams collect product events, query them quickly, and connect data to dashboards, LLM retrieval pipelines, observability tools, or other analytics products.

The problem it solves is the operational burden of assembling an event pipeline from separate components. Instead of combining an ingestion API, an event streaming system, a database, and a query layer, teams can deploy one image that ingests events through a Segment-compatible Track, Group, and Identify API and stores them for real-time analysis. The README says Trench was built to scale the event tracking pipeline at Frigade, and it describes the system as no-cookie, GDPR, and PECR compliant, with user controls for accessing, rectifying, or deleting data.

Key capabilities

  • Trench exposes a Segment-compatible event API with Track, Group, and Identify operations.
  • It runs as a single production-ready Docker image, reducing deployment services.
  • The README states it can process thousands of events per second on a single node.
  • It supports real-time queries through the /events endpoint and raw SQL queries through a queries endpoint.
  • It connects data to other destinations through webhooks, and its topics include dashboards, event replay, LLM, Kafka, ClickHouse, and Matomo.

Who uses it and how

  • Product teams can collect events and build analytics dashboards, as shown by the README demo that combines Trench and Grafana for a basic Google Analytics-style view.
  • Engineering teams can send events to the /events endpoint with a public API key, then query them with a private API key.
  • Teams building LLM retrieval pipelines, observability platforms, or other analytics products can run real-time queries or raw SQL, then route results to webhooks or visualization tools.

Getting started

Self-hosted deployment uses Docker and Docker Compose: clone the repository, copy the example environment file, run the provided compose command, and access the server at http://localhost:4000, which starts a local ClickHouse and Kafka instance. Trench Cloud is also offered as a managed serverless option with autoscaling and a 99.99% SLA.

When to use it — and when not to

Trench fits teams that want open-source analytics infrastructure, can operate ClickHouse and Kafka, and need a Segment-compatible event API for dashboards, LLM pipelines, or observability products. Self-hosting requires managing Docker Compose, environment configuration, API keys, and the local ClickHouse and Kafka services. The project is presented as a way to build a basic Google Analytics-style dashboard with Grafana, but the facts do not detail feature parity with hosted analytics products, and the repository is listed as only 0 years old, so maturity may be limited.

project readme (upstream, from github) — read inline


Open-Source Analytics Infrastructure


Documentation · Website · Slack Community · Demo

🌊 What is Trench?

Trench is an event tracking system built on top of Apache Kafka and ClickHouse. It can handle large event volumes and provides real-time analytics. Trench is no-cookie, GDPR, and PECR compliant. Users have full control to access, rectify, or delete their data.

Our team built Trench to scale up the real-time event tracking pipeline at Frigade.

⭐ Features

  • 🤝 Compliant with the Segment API (Track, Group, Identify)
  • 🐳 Deploy quickly with a single production-ready Docker image
  • 💻 Process thousands of events per second on a single node
  • ⚡ Query data in real-time
  • 🔗 Connect data to other destinations with webhooks
  • 👥 Open-source and MIT Licensed

🖥️ Demo

Live demo: https://demo.trench.dev

Video demo:

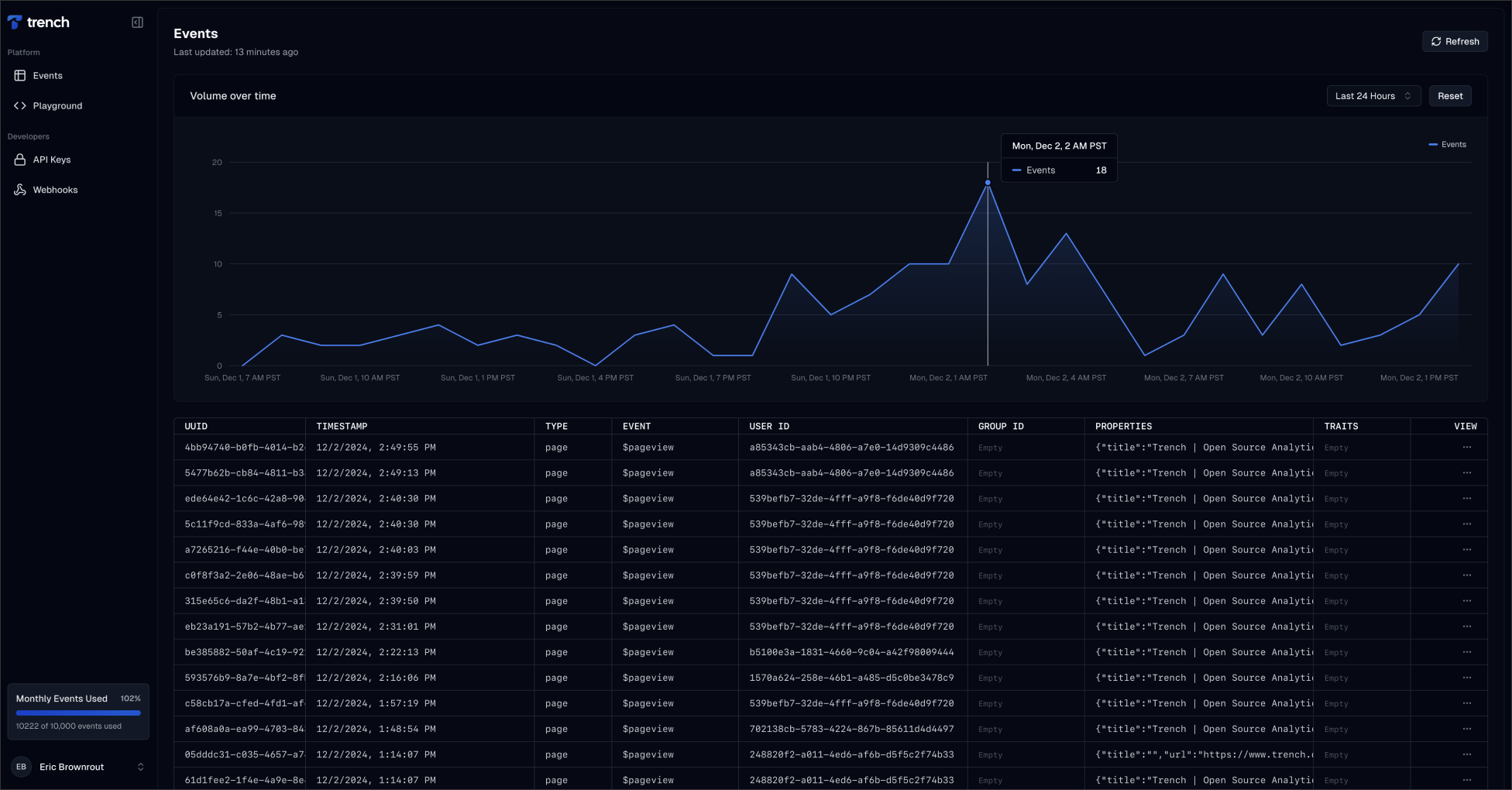

Watch the following demo to see how you can build a basic version of Google Analytics using Trench and Grafana.

https://github.com/user-attachments/assets/e3f64590-6e7e-41b9-b425-7adb5a1e19b1

🚀 Quickstart

Trench has two methods of deployment:

  1. Trench Self-Hosted: An open-source version to deploy and manage Trench on your own infrastructure.
  2. Trench Cloud: A fully-managed serverless solution with zero ops, autoscaling, and 99.99% SLAs.

1. Trench Self-Hosted 💻

Follow our self-hosting instructions below and in our quickstart guide to begin using Trench Self-Hosted.

If you have questions or need assistance, you can join our Slack group for support.

Quickstart

  1. Deploy Trench Dev Server: The only prerequisite for Trench is a system that has Docker and Docker Compose installed see installation guide. We recommend having at least 4GB of RAM and 4 CPU cores for optimal performance if you're running a production environment.

    After installing Docker, you can start the local development server by running the following commands:

    git clone https://github.com/frigadehq/trench.git
cd trench/apps/trench
cp .env.example .env
docker-compose -f docker-compose.yml -f docker-compose.dev.yml up --build --force-recreate --renew-anon-volumes

    The above command will start the Trench server that includes a local ClickHouse and Kafka instance on http://localhost:4000. You can open this URL in your browser and you should see the message Trench server is running. You shouldupdate the .env file to change any of the configuration options.

  2. Send a sample event: You can find and update the default public and private API key in the .env file. Using your public API key, you can send a sample event to Trench as such:

    curl -i -X POST \
   -H "Authorization:Bearer public-d613be4e-di03-4b02-9058-70aa4j04ff28" \
   -H "Content-Type:application/json" \
   -d \
'{
  "events": [
    {
      "userId": "550e8400-e29b-41d4-a716-446655440000",
      "type": "track",
      "event": "ConnectedAccount",
      "properties": {
        "totalAccounts": 4,
        "country": "Denmark"
      },
    }]
}' \
 'http://localhost:4000/events'

  3. Querying events: You can query events using the /events endpoint (see API reference for more details).

    You can also query events directly from your local Trench server. For example, to query events of type ConnectedAccount, you can use the following URL:

    curl -i -X GET \
   -H "Authorization: Bearer private-d613be4e-di03-4b02-9058-70aa4j04ff28" \
   'http://localhost:4000/events?event=ConnectedAccount'

    This will return a JSON response with the event that was just sent:

    {
  "results": [
    {
      "uuid": "25f7c712-dd86-4db0-89a8-d07d11b73e57",
      "type": "track",
      "event": "ConnectedAccount",
      "userId": "550e8400-e29b-41d4-a716-446655440000",
      "properties": {
        "totalAccounts": 4,
        "country": "Denmark"
      },
      "timestamp": "2024-10-22T19:34:56.000Z",
      "parsedAt": "2024-10-22T19:34:59.530Z"
    }
  ],
  "limit": 1000,
  "offset": 0,
  "total": 1
}

  4. Execute raw SQL queries: Use the queries endpoint to analyze your data. Example:

    curl -i -X POST \
   -H "Authorization:Bearer public-d613be4e-di03-4b02-9058-70aa4j04ff28" \
   -H "Content-Type:application/json" \
   -d \
'{
  "queries": [
    "SELECT COUNT(*) FROM events WHERE user"
  ]
}' \
 'http://localhost:4000/queries'

    Sample query result:

    {
  "results": [
    {
      "count": 5
    }
  ],
  "limit": 0,
  "offset": 0,
  "total": 1
}

Kafka authentication

Trench supports connecting to Kafka clusters that require SASL and/or SSL. Configure via the following environment variables (all optional):

  • KAFKA_SSL_ENABLED: Enable SSL/TLS when connecting to brokers. Values: true/false (default: false).
  • KAFKA_SSL_REJECT_UNAUTHORIZED: Whether to verify broker certificates. Values: true/false (default: true). Set to false when using self-signed certs in development.
  • KAFKA_SSL_CA: CA certificate contents (PEM). Use when brokers use a custom CA.
  • KAFKA_SSL_CERT: Client certificate contents (PEM) if mutual TLS is required.
  • KAFKA_SSL_KEY: Client private key (PEM) if mutual TLS is required.
  • KAFKA_SASL_MECHANISM: One of plain, scram-sha-256, or scram-sha-512.
  • KAFKA_SASL_USERNAME: SASL username (required when KAFKA_SASL_MECHANISM is set).
  • KAFKA_SASL_PASSWORD: SASL password (required when KAFKA_SASL_MECHANISM is set).

Notes:

  • For SSL cert variables, provide the PEM content directly (including header/footer) or mount files and load into env before starting.
  • When using Bitnami Kafka images locally, the default docker-compose.yml uses PLAINTEXT; set the appropriate broker listeners and advertise SSL/SASL endpoints in your Kafka deployment if required.
  • Kafka authentication for ClickHouse should be configured in ClickHouse server configuration files, not in SQL migrations.

ClickHouse Kafka Authentication

For ClickHouse to connect to authenticated Kafka clusters, you need to configure authentication in ClickHouse server configuration files.

2. Trench Cloud ☁️

If you don't want to selfhost, you can get started with Trench in a few minutes via:

🔗 Links

Kafka Authentication Examples

Trench supports Kafka authentication with SASL and SSL. Here are examples of how to configure both Node.js KafkaJS client and ClickHouse for authenticated Kafka connections.

Quick Start:

  • SASL-only: docker compose -f docker-compose.sasl.yml up -d --build
  • SSL+SASL: Generate certs first with ./scripts/generate-kafka-certs.sh, then run the compose file
SASL-Only Authentication
# Run with SASL authentication (no SSL)
docker compose -f docker-compose.sasl.yml up -d --build

This setup uses:

  • Node.js KafkaJS: KAFKA_SASL_MECHANISM=PLAIN, KAFKA_SASL_USERNAME=kafka_user, KAFKA_SASL_PASSWORD=kafka_password
  • ClickHouse: Pre-configured with `clickhouse-kafka-auth-config-example/clic

readme truncated — read the full docs on github

Frequently asked questions

Is Trench free to use?

Trench is open source under the MIT licence. There is no licence fee and no seat count — you can self-host it or, where the project offers one, pay a vendor for a managed version instead.

What does Trench do?

Fast, scalable analytics infrastructure

What is Trench written in?

Trench is primarily written in TypeScript. Its source is publicly available at https://github.com/FrigadeHQ/trench, and it has 1,663 GitHub stars.
