sherloq is a free, open source photo & video editors project written in Perl and released under GPL-3.0. It has 3,218 GitHub stars, 316 forks and 25 open issues, and was last pushed 3 months ago. On this registry it ranks #37 of 59 tracked projects in Photo & Video Editors, with 5 head-to-head comparisons available.

What is sherloq?

Sherloq is an open-source, Qt-based digital image forensic toolset for researchers, students and practitioners who want to run and compare image-authentication techniques themselves rather than trust a closed commercial verdict.

What it is

Sherloq is a personal research project that provides a fully integrated environment for digital image forensics: a multi-window desktop application in which several analyses of the same image can be shown on screen at once and driven interactively. The project began in 2015 as a C++11 command-line utility compiled with CMake against OpenCV, Boost and AlgLib, gained a Qt-based GUI in 2017, and was ported in 2020 to Python using PySide2, Matplotlib and OpenCV so that development and deployment would be simpler.

The concrete problem it addresses is that forensic image analysis — photogrammetry, photographic comparison, content analysis and image authentication, as defined by the Scientific Working Group on Imaging Technologies — is normally reachable only through commercial solutions carrying high retail prices and often reserved to law enforcement and government agencies. Sherloq deliberately does not decide automatically whether an image is forged; it offers an extensible framework and a starting point for experimenting with algorithms taken from recent research papers and workshops, on the premise that a forensic service should not rest on security-by-obscurity.

Key capabilities

  • Modern Qt-based GUI with multiple tool window management, plus a highly responsive image viewer with real-time pan and zoom.
  • Support for JPEG, PNG, TIFF, BMP, WebP, PGM, PFM and GIF.
  • File Digest tool that retrieves physical file information along with cryptographic and perceptual hashes.
  • Hex Editor integration that opens an external hexadecimal editor to show and edit raw bytes.
  • Similar Search, which browses online search services to find visually similar images.
  • Metadata inspection through a Header Structure dump of the file header, alongside an Original Image view of the unaltered reference for visual comparison.
  • Export of both visual and textual analysis results, supported by extensive online help with explanations and tutorials.

Who uses it and how

  • Researchers and students testing algorithms from recent research papers, displaying multiple analyses of one image simultaneously and switching between them interactively.
  • Learners of digital signal processing using it as an educational tool, since the project describes itself as an unpretentious educational tool rather than a distributed final product.
  • Analysts working across heterogeneous files who inspect digests and header structure first, then move to deeper analysis in the same session across the eight supported formats.
  • Contributors extending the framework, with code improvements and bug reports welcomed through the repository, which currently carries 25 open issues.

Getting started

The README devotes an Installation section to setup; the application runs from source as a Python desktop program built on PySide2, Matplotlib and OpenCV, with no hosted option or container image described in the available documentation.

How it compares

The available facts name no specific competitor, commercial or otherwise; Sherloq is contrasted only generically with proprietary forensic suites that carry high retail prices and are often restricted to law enforcement and government agencies. In the absence of any comparable tool in the facts, it stands alone in this registry under Miscellaneous / Photo & Video Editors.

When to use it — and when not

It suits a self-hoster willing to operate a plain desktop environment, since no database, object storage or SMTP service is mentioned — only the Python, PySide2, Matplotlib and OpenCV dependencies. It should not be chosen by anyone needing an authoritative automated verdict on whether an image is forged, by anyone expecting a polished final product, or by anyone wanting every planned feature, because the author expects bugs, unpolished code and missing features, notes that functions shown in italics in the program are not yet implemented, and states that porting of the earlier code is not complete.

project readme (upstream, from github) — read inline


An open source digital image forensic toolset

Introduction

"Forensic Image Analysis is the application of image science and domain expertise to interpret the content of an image and/or the image itself in legal matters. Major subdisciplines of Forensic Image Analysis with law enforcement applications include: Photogrammetry, Photographic Comparison, Content Analysis, and Image Authentication." (Scientific Working Group on Imaging Technologies)

Sherloq is a personal research project about implementing a fully integrated environment for digital image forensics. It is not meant as an automatic tool that decide if an image is forged or not (that tool probably will never exist...), but as a companion in experimenting with various algorithms found in the latest research papers and workshops.

While many commercial solutions have high retail prices and often reserved to law enforcement and government agencies only, this toolset aims to be a both an extensible framework and a starting point for anyone interested in making experiments in this particular application of digital signal processing.

I strongly believe that security-by-obscurity is the wrong way to offer any kind of forensic service (i.e. "Using this proprietary software I guarantee you that this photo is pristine... and you have to trust me!"). Following the open-source philosophy, everyone should be able to try various techniques on their own, gain knowledge and share it to the community... even better if they contribute with code improvements! :)

History

The first version was written in 2015 using C++11 to build a command line utility with many options, but soon it turned to be too cumbersome and not much interactive. That version could be compiled with CMake after installing OpenCV, Boost and AlgLib libraries. This first proof of concept offered about 80% of planned features (see below for the full list).

While also including novel algorithms, the 2017 version mainly added a Qt-based multi-window GUI to provide a better user experience. Multiple analyses could be shown on screen and a fast zoom/scroll viewer was implemented for easier image navigation. That project could be compiled with Qt Creator with Qt 5 and OpenCV 3 and covered about 70% of planned features.

Fast-forward to 2020 when I decided to port everything in Python (PySide2 + Matplotlib + OpenCV) for easier development and deployment. While this iteration is just begun and I have yet to port all the previous code on the new platform, I think this will be the final "form" of the project (as long as someone does not volunteer up to develop a nice web application!).

I'm happy to share my code and get in contact with anyone interested to improve or test it, but please keep in mind that this repository is not intended for distributing a final product, my aim is just to publicly track development of an unpretentious educational tool, so expect bugs, unpolished code and missing features! ;)

Features

This list contains the functions that the toolkit will (hopefully) provide once beta stage is reached (NOTE: functions displayed in italics inside the program are not yet implemented!).

Interface

  • Modern Qt-based GUI with multiple tool window management
  • Support for many formats (JPEG, PNG, TIFF, BMP, WebP, PGM, PFM, GIF)
  • Highly responsive image viewer with real-time pan and zoom
  • Many state-of-the-art algorithms to try out interactively
  • Export both visual and textual results of the analysis
  • Extensive online help with explanations and tutorials

Tools

General

  • Original Image: display the unaltered reference image for visual inspection
  • File Digest: retrieve physical file information, crypto and perceptual hashes
  • Hex Editor: open an external hexadecimal editor to show and edit raw bytes
  • Similar Search: browse online search services to find visually similar images

Metadata

  • Header Structure: dump the file header structure and display an interactive view
  • EXIF Full Dump: scan through file metadata and gather all available information
  • Thumbnail Analysis: extract optional embedded thumbnail and compare with original
  • Geolocation Data: retrieve optional geolocation data and show it on a world map

Inspection

  • Enhancing Magnifier: magnifying glass with enhancements for better identifying forgeries
  • Channel Histogram: display single color channels or RGB composite interactive histogram
  • Global Adjustments: apply standard image adjustments (brightness, hue, saturation, ...)
  • Reference Comparison: open a synchronized double view for comparison with another picture

Detail

  • Luminance Gradient: analyze horizontal/vertical brightness variations across the image
  • Echo Edge Filter: use derivative filters to reveal artificial out-of-focus regions
  • Wavelet Threshold: reconstruct image with different wavelet coefficient thresholds
  • Frequency Split: split image luminance into high and low frequency components

Colors

  • RGB/HSV Plots: display interactive 2D and 3D plots of RGB and HSV pixel values
  • Space Conversion: convert RGB channels into HSV/YCbCr/Lab/Luv/CMYK/Gray spaces
  • PCA Projection: use color PCA to project pixel onto most salient components
  • Pixel Statistics: compute minimum/maximum/average RGB values for every pixel

Noise

  • Noise Separation: estimate and extract different kind of image noise components
  • Min/Max Deviation: highlight pixels deviating from block-based min/max statistics
  • Bit Planes Values: show individual bit planes to find inconsistent noise patterns
  • Wavelet Blocking: shows averaged noise levels in an image to find noise inconsistencies
  • PRNU Identification: exploit sensor pattern noise introduced by different cameras

JPEG

  • Quality Estimation: extract quantization tables and estimate last saved JPEG quality
  • Error Level Analysis: show pixel-level difference against fixed compression levels
  • Multiple Compression: use a machine learning model to detect multiple compression
  • JPEG Ghost Maps: highlight traces of different compression levels in difference images

Tampering

  • Contrast Enhancement: analyze color distribution to detect contrast enhancements
  • Copy-Move Forgery: use invariant feature descriptors for cloned area detection
  • Composite Splicing: exploit DCT statistics for automatic splicing zone detection
  • Image Resampling: estimate 2D pixel interpolation for detecting resampling traces

Various

  • Median Filtering: detect processing traces left by nonlinear median filtering
  • Illuminant Map: estimate scene local light direction on estimated 3D surfaces
  • Dead/Hot Pixels: detect and fix dead/hot pixels caused by sensor imperfections
  • Stereogram Decoder: decode 3D images concealed in crossed-eye autostereograms

Screenshots

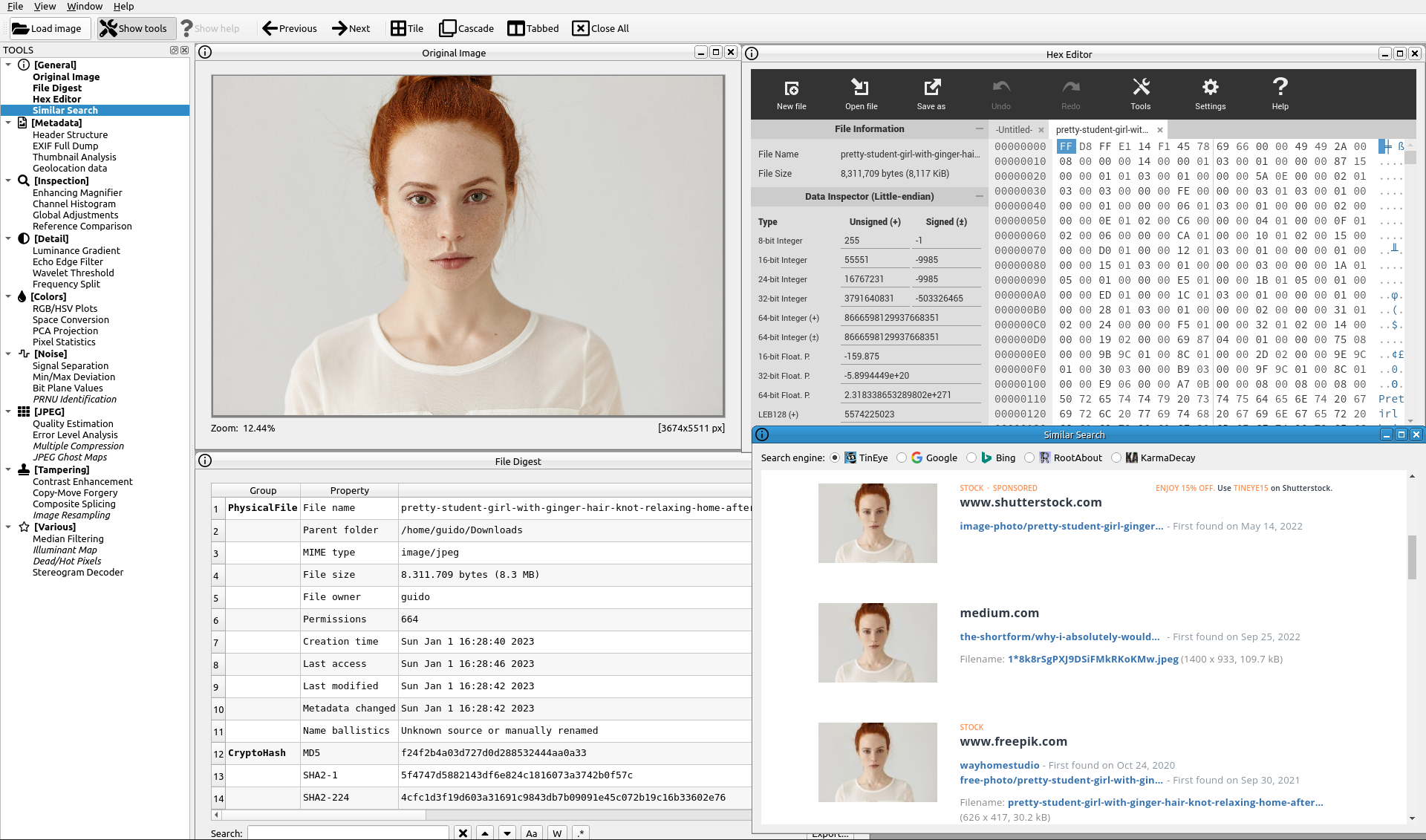

General: Original Image, Hex Editor, File Digest, Similar Search

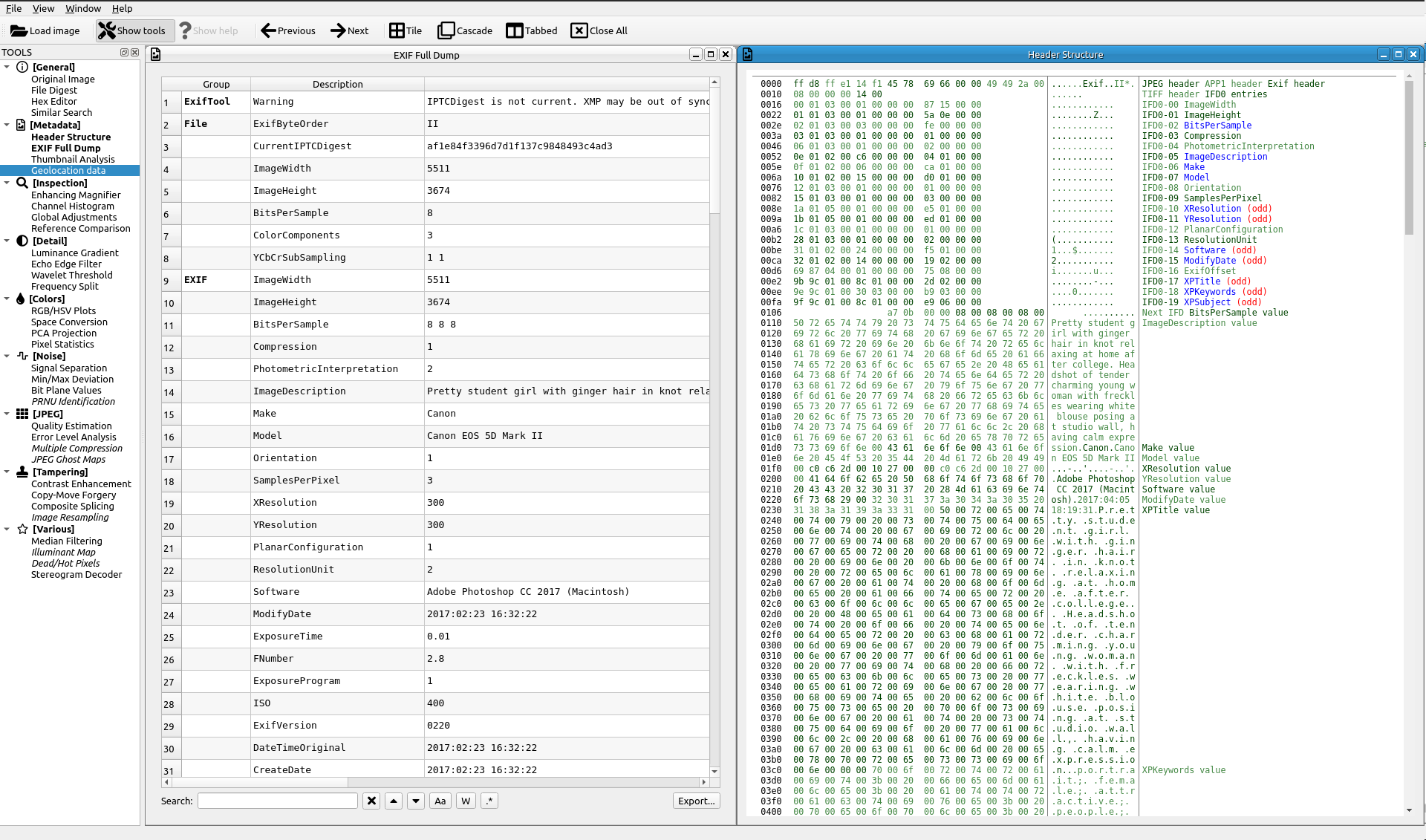

Metadata: EXIF Full Dump, Header Structure

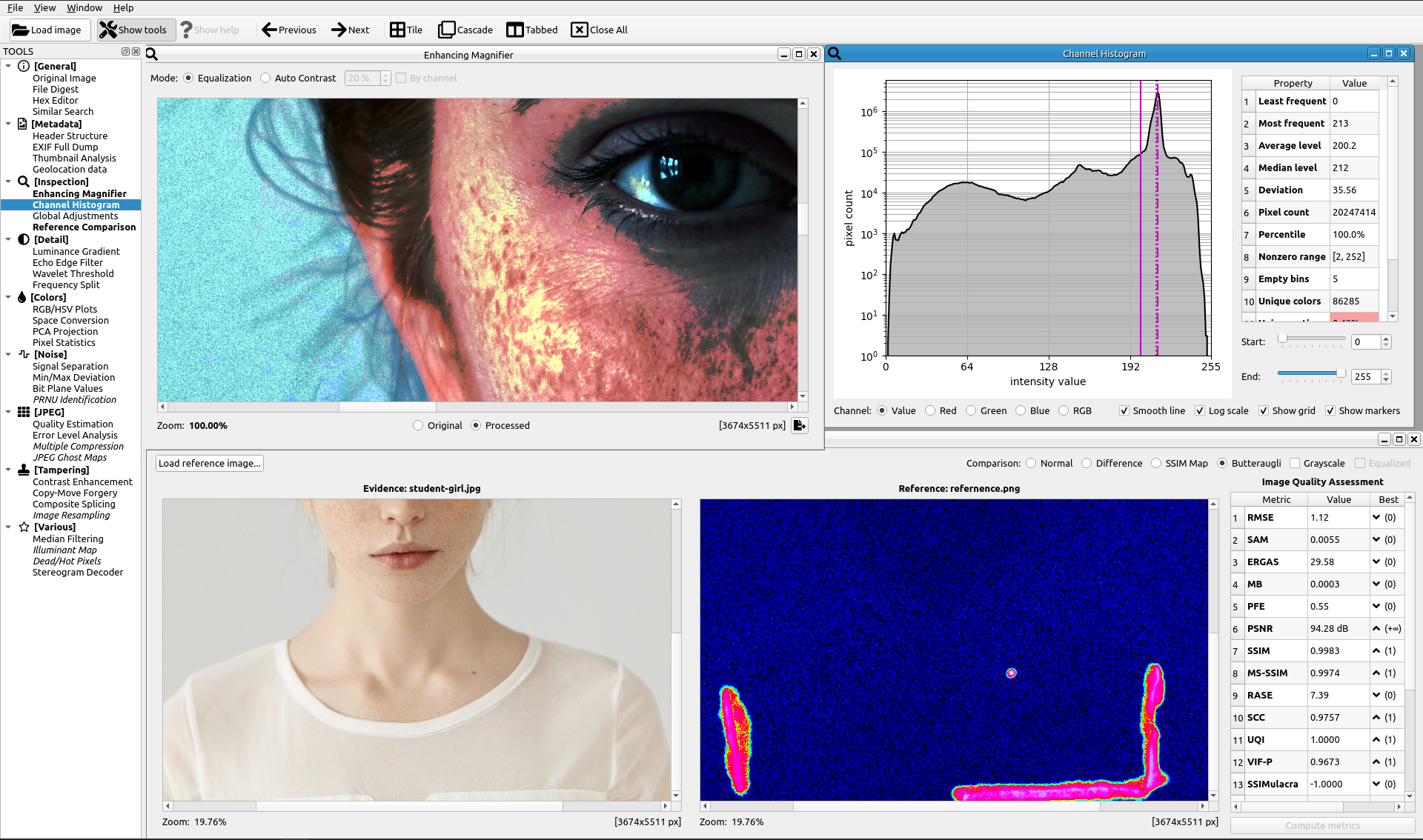

Inspection: Enhancing Magnifier, Channel Histogram, Reference Comparison

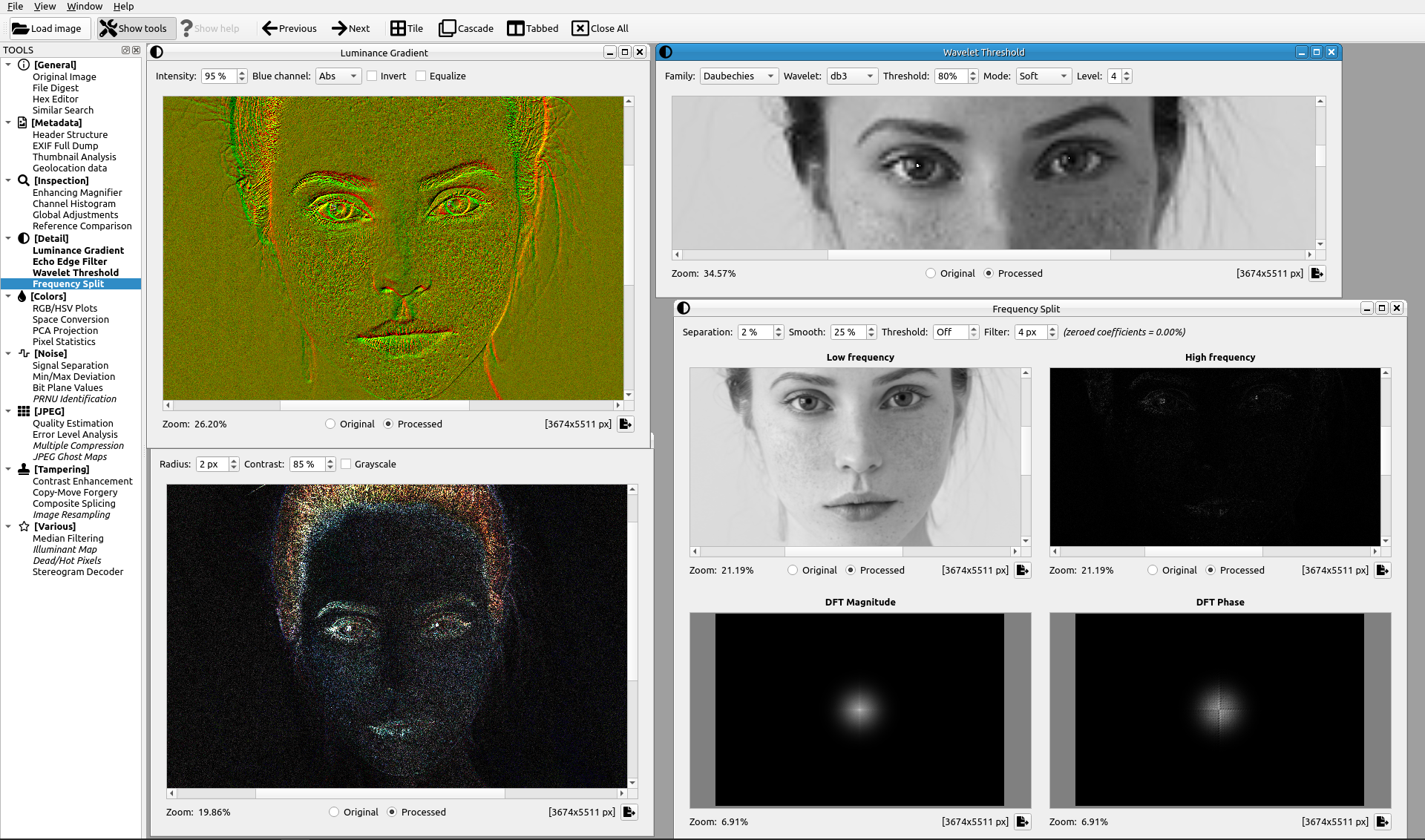

Detail: Luminance Gradient, Echo Edge Filter, Wavelet Threshold, Frequency Split

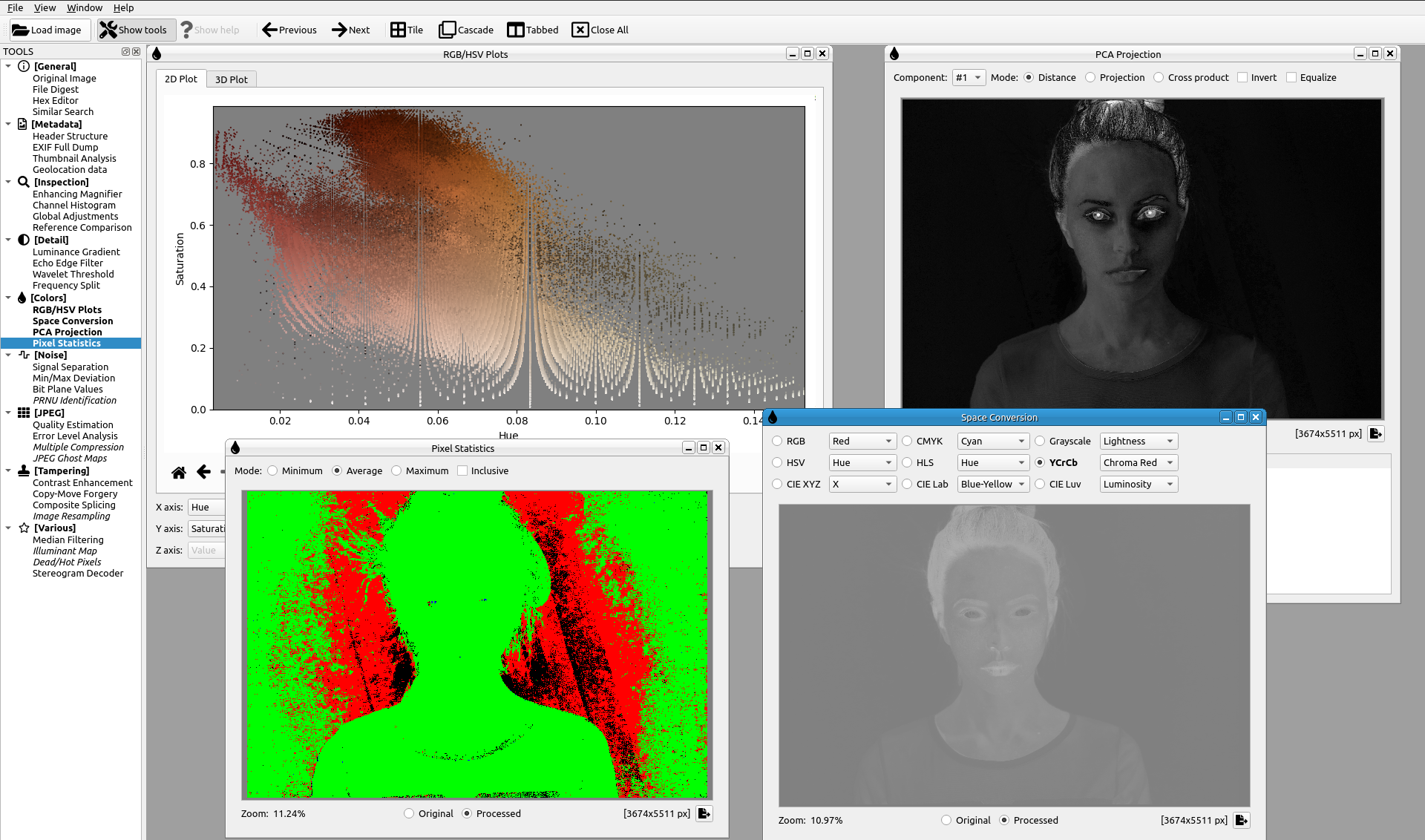

Colors: RGB/HSV Plots, Space Conversion, PCA Projection, Pixel Statistics

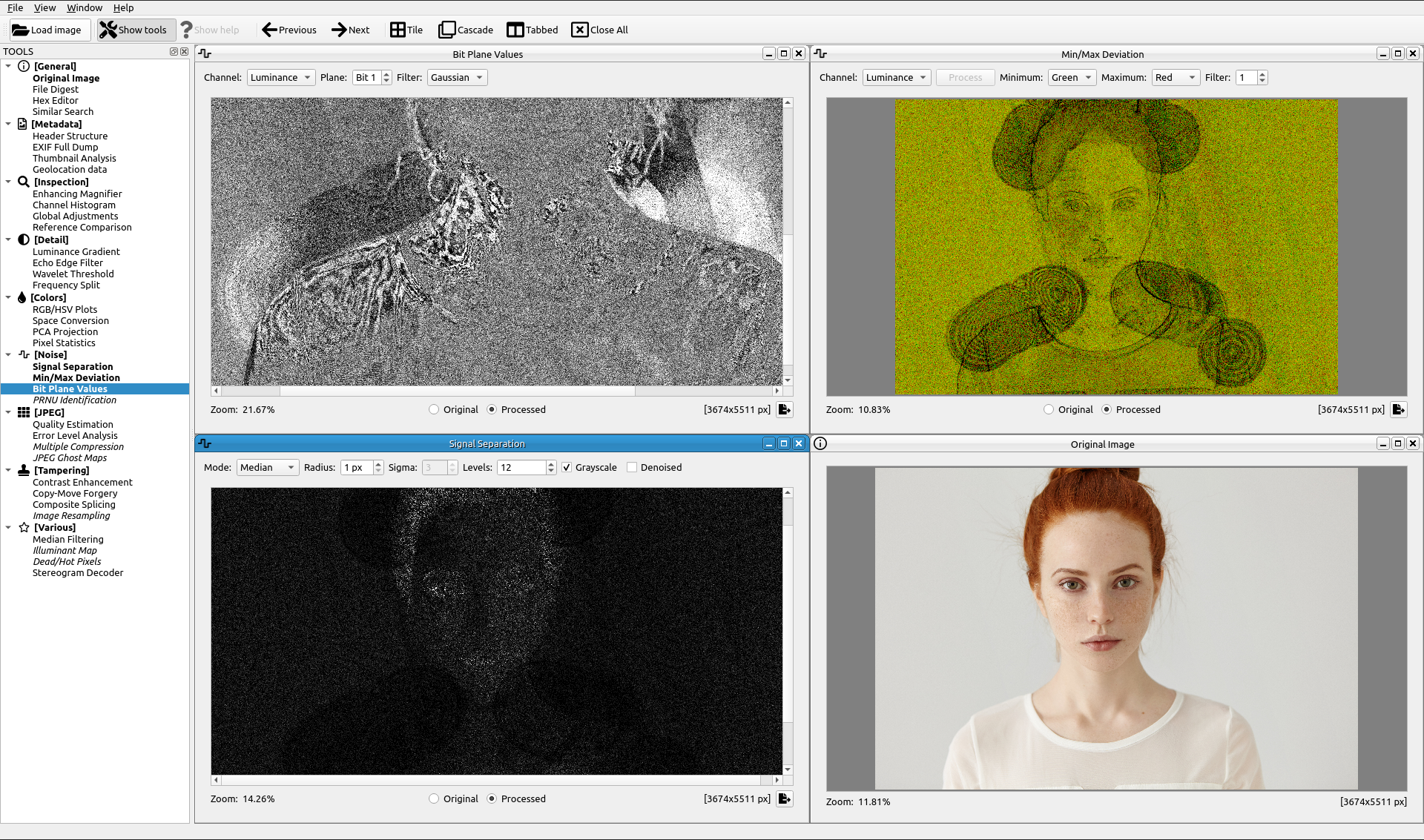

Noise: Signal Separation, Min/Max Deviation, Bit Plane Values

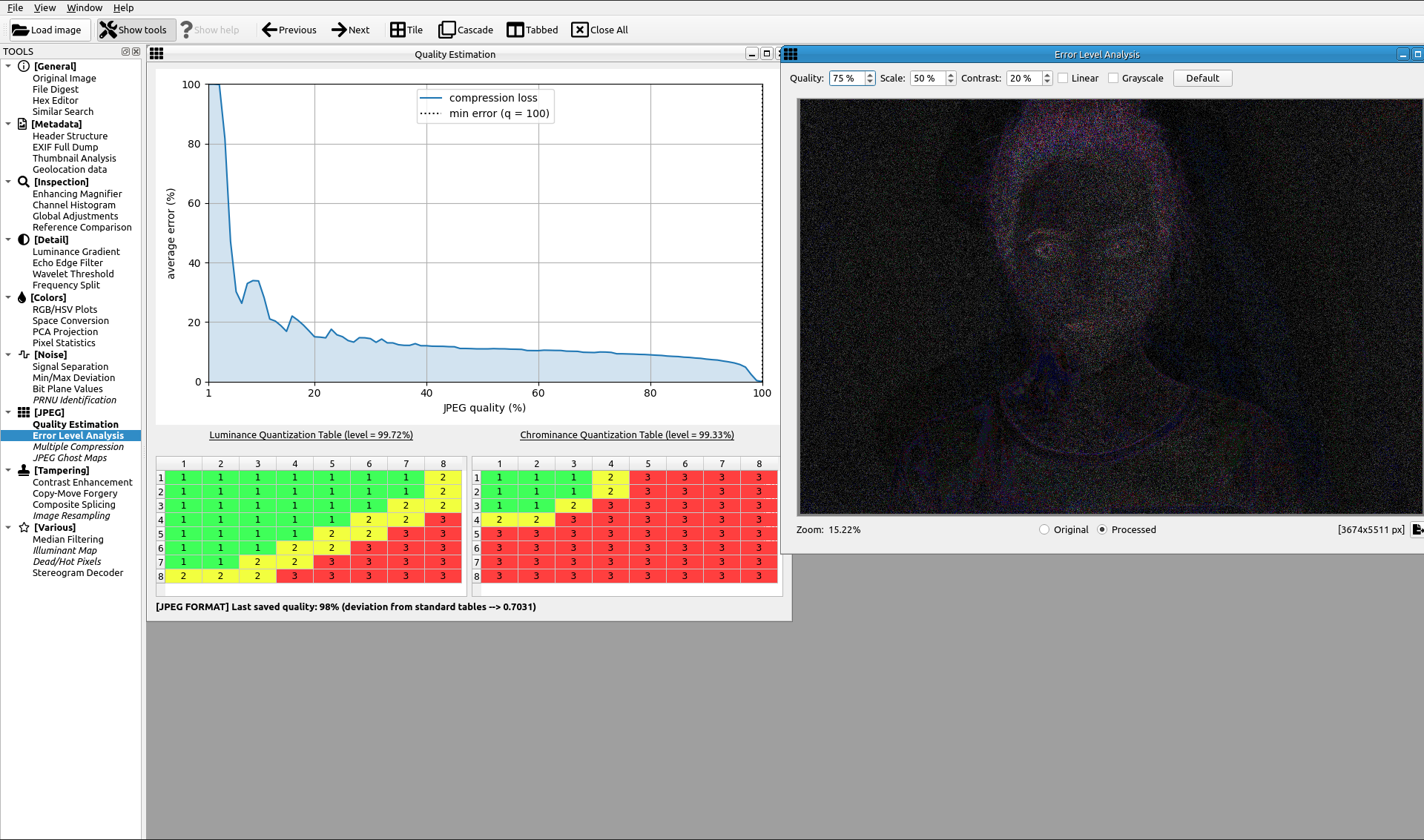

JPEG: Quality Estimation, Error Level Analysis

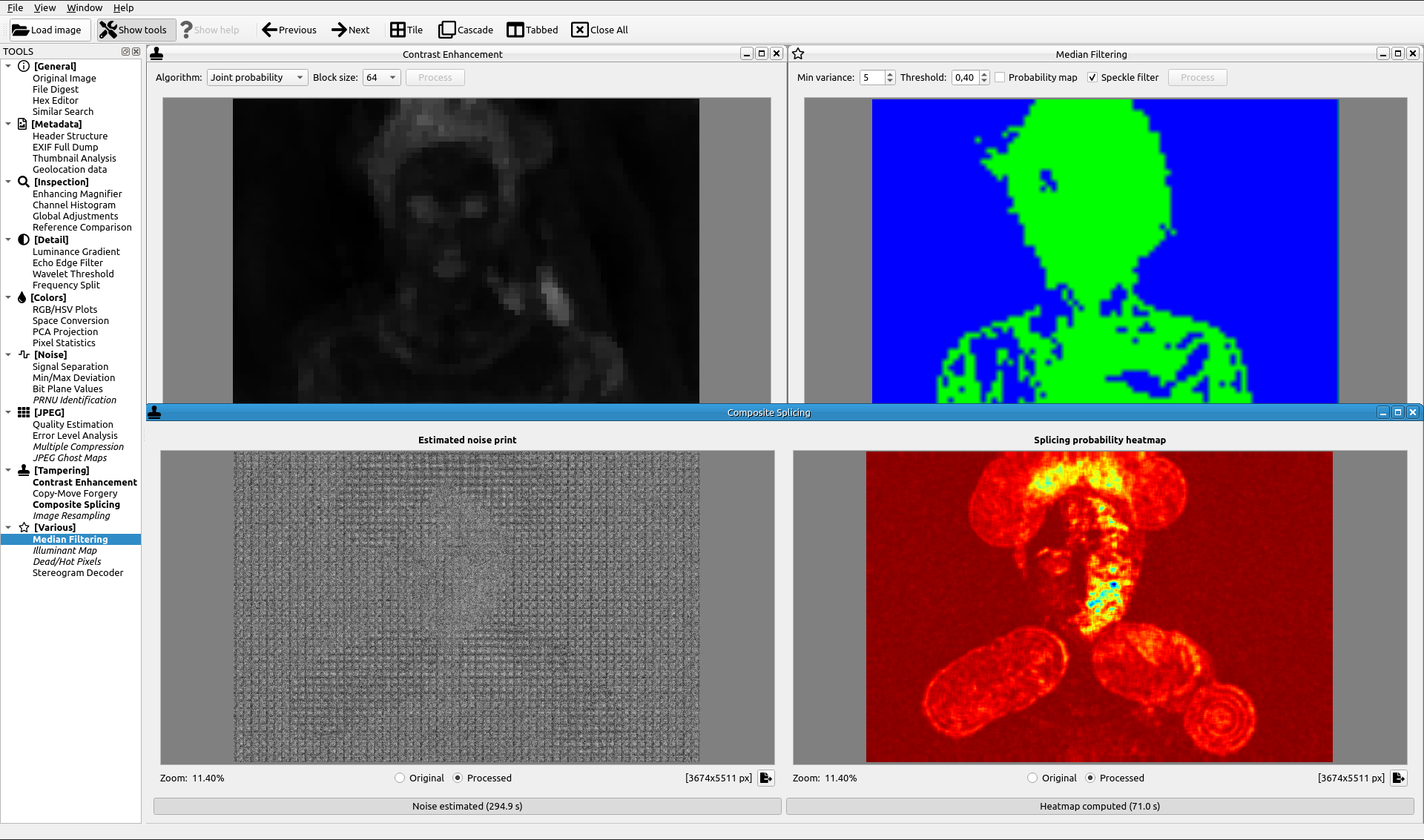

Tampering: Contrast Enhancement, Copy/Move Forgery, Composite Splicing, Median Filtering

Installation

[1/4] Download source code

Clone the current repository into a local folder and change current directory to it.

[2/4] Create virtual environment

Sherloq uses Python 3.11. The recommended setup uses uv because it provides the same workflow on Linux, macOS and Windows, can install Python when needed, and keeps the project environment in the local .venv folder.

Install uv following the official installation guide, then create the environment from the Sherloq root folder:

$ uv venv --python 3.11

The repository also includes a .python-version file, so future uv commands use Python 3.11 by default.

[3/4] Install dependencies

$ uv pip install -r gui/requirements.txt

Some experimental AI-backed tools need additional packages. Install them only if you plan to use those tools:

$ uv pip install -r gui/requirements_ai_solutions.txt

[4/4] Launch program

Sherloq can be launched from the repository root. The application package resolves icons, models and bundled tools through centralized project paths.

Linux/macOS
$ source .venv/bin/activate
$ python -m gui.sherloq_app
Windows PowerShell
> .venv\Scripts\Activate.ps1
> python -m gui.sherloq_app

You can also use the repository-root compatibility launcher:

$ python sherloq.py

NOTE for Linux users: if this error is displayed:

qt.qpa.plugin: From 6.5.0, xcb-cursor0 or libxcb-cursor0 is needed to load the Qt xcb platform plugin.
qt.qpa.plugin: Could not load the Qt platform plugin "xcb" in "" even though it was found.
This application failed to start because no Qt platform plugin could be initialized. Reinstalling the application may fix this problem.

Run this command from the terminal: sudo apt install -y libxcb-cursor-dev

Project Structure

The Python Qt application now lives in the importable gui/sherloq_app package:

  • main.py: Qt application entry point and main window.
  • core/: shared image-processing helpers such as JPEG utilities and file loading.
  • ui/: reusable Qt widgets, viewers, tables and the tool tree.
  • tools/: analysis widgets grouped by toolbox category (general, metadata, inspection, detail, colors, noise, jpeg, tampering, various).
  • paths.py: centralized access to icons, models and bundled native helpers so code no longer depends on launching from gui.

Large bundled assets and third-party research components remain under gui/icons, gui/models, gui/noiseprint, gui/pyexiftool, gui/butteraugli, gui/ssimulacra and optional gui/TruFor_main.

See docs/project-structure.md for a contributor-oriented map.

Updates

When a new version is released, update the local working copy with Git or by downloading the latest source, then refresh the environment from the Sherloq root folder:

$ uv pip install --upgrade -r gui/requirements.txt

If you installed the optional AI dependencies, refresh them too:

$ uv pip install --upgrade -r gui/requirements_ai_solutions.txt

Recommended Resources for Getting Started

  • Paper with practical examples and thoughtful analysis for techniques that have since been implemented in Sherloq: "A Picture's Worth: Digital Image Analysis and Forensics" (Neal Krawetz) [paper]
  • Thesis with practical examples and thoughtful analysis for using the "JPEG Ghosts", "Image Resampling" and "Noise Wavelet Blocking" tools implemented in Sherloq. This work also offers insights towards the use and reliability of AI driven approaches in Digital Image Forensics. (UHstudent) [paper]

References for Algorithms Implemented in Sherloq

  • Image Resampling: "Exposing Digital Forgeries by Detecting Traces of Re-sampling" (Alin C. Popescu and Hany Farid) [paper]
  • JPEG Ghosts: "Exposing Digital Forgeries from JPEG Ghosts" (H. Farid) [paper]
  • Noise Wavelet Blocking: "Using noise inconsistencies for blind image forensics" (Babak Mahdian and Stanislav Saic) [paper]

Bibliography

  • "Noiseprint: a CNN-based camera model fingerprint" (Davide Cozzolino, Luisa Verdoliva) [website]
  • "Two Improved Forensic Methods of Detecting Contrast Enhancement in Digital Images" (Xufeng Lin, Xingjie Wei and Chang-Tsun Li) [paper]

Frequently asked questions

Is sherloq free to use?

sherloq is open source under the GPL-3.0 licence. There is no licence fee and no seat count — you can self-host it or, where the project offers one, pay a vendor for a managed version instead.

What does sherloq do?

An open-source digital image forensic toolset

What is sherloq written in?

sherloq is primarily written in Perl. Its source is publicly available at https://github.com/GuidoBartoli/sherloq, and it has 3,218 GitHub stars.
